This large bridge crosses the Big Blue River near its mouth at the Smoky Hill River, where it forms the Kansas River.
Comprised of three main spans, it was originally set further west containing two spans. When the river created a new channel in 1908, the bridge was moved to its current location.
In addition, a third span was used. It is unknown where this third span may have come from, or if it was built new.
The bridge features a trip of riveted Quadrangular Through Trusses. This design of truss is relatively rare in Kansas and Missouri.

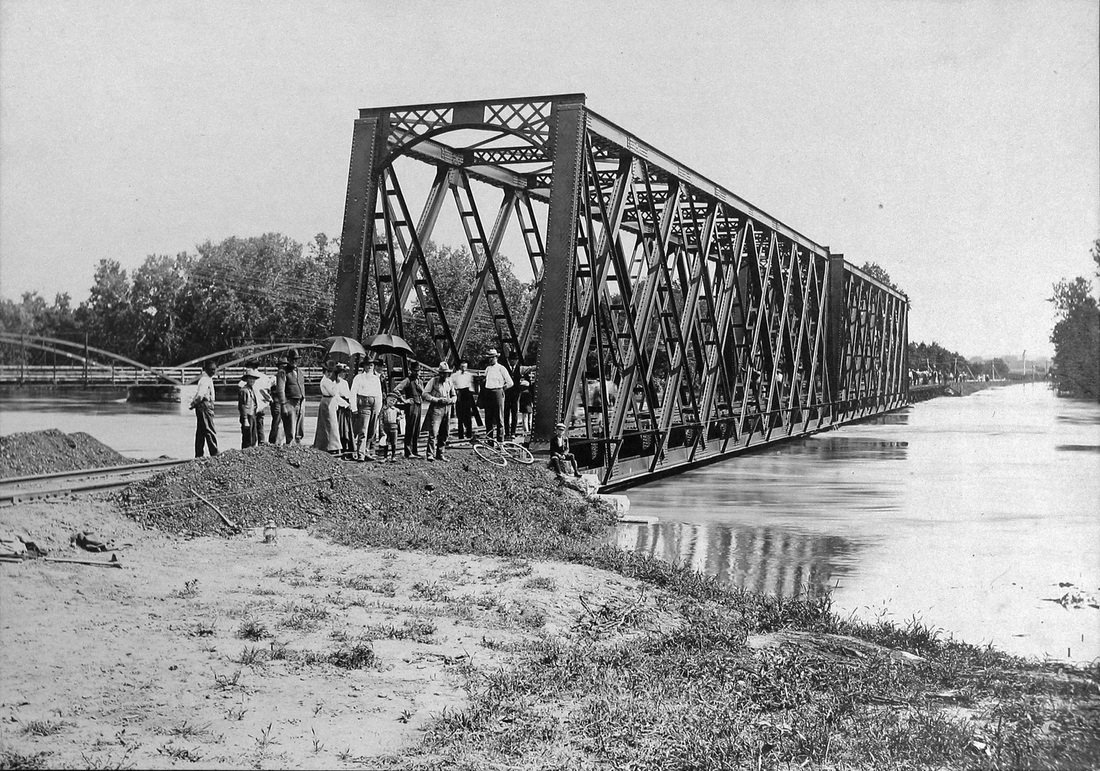

Historic photo of the bridge
Fortunately, the bridge has had little alteration since construction. The one alteration is the replacement of the original portal bracings to be able to accommodate larger trains.
The bridge rests on concrete substructures, setting it apart from many other spans used in this area.
Despite the historical integrity of the bridge, no builders plaques are evident.
The bridge remains in great condition and is well maintained, although is not part of the busiest mainline across Kansas.
The author has ranked this bridge as being regionally significant, due to the low number of Quadrangular Trusses in the region.
The photo above is an overview. The bridge can be accessed from a parallel road.
| Upstream | BRR Big Blue River Bridge |
| Downstream | Mouth at Kansas River |
